Your studio, any time.
A constant UV source, independent of the weather. Work when you are ready.

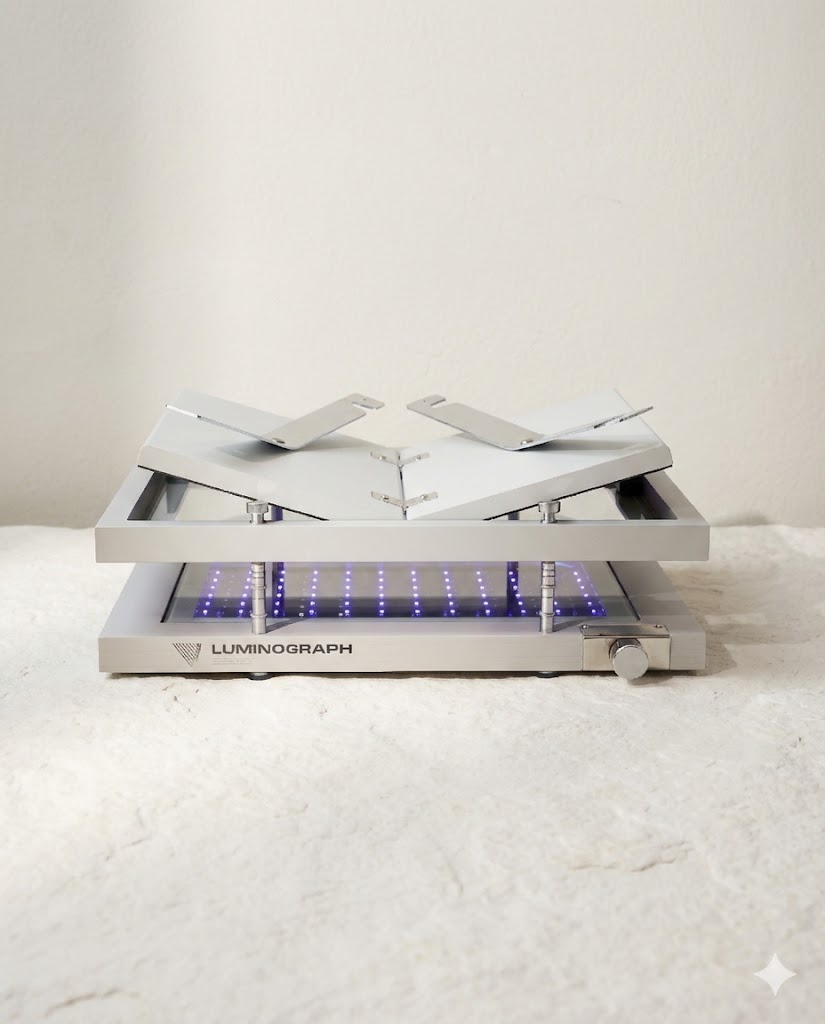

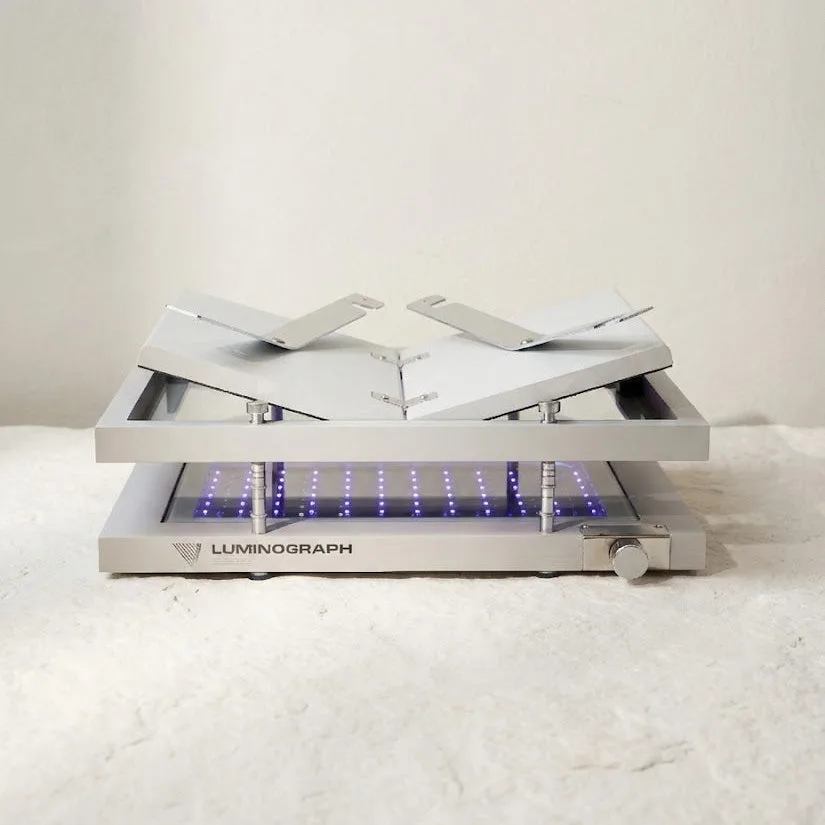

Luminograph — UV exposure unit for alternative photography

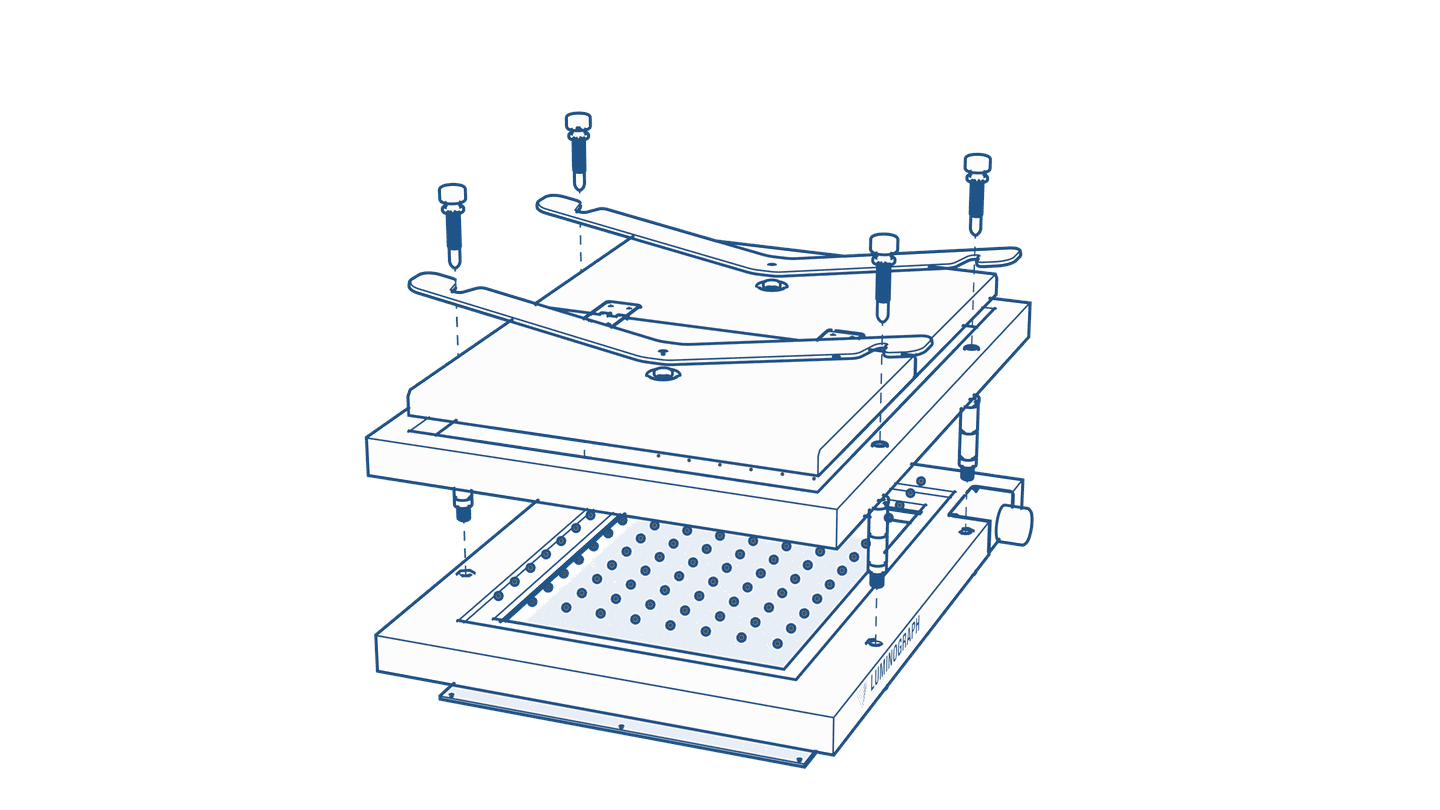

The machine, from assembly to both formats
- It starts here. Underneath, the UV LED board: 30 W, 395-400 nm.
- Light, distributed. The diffuser spreads light beneath the glass carrying your negative.
- Contact makes the detail. Two arms hold the paper against the negative.
- The whole sheet, edge to edge. 23 × 33 cm of exposure area covers your A4 sheet, margins included.
- Ready to work. One selector. Two lights. One device.
- Your negative stays in place. The press maintains contact throughout the exposure.
- Red to prepare. The safelight channel helps you position your negative.
- Violet to expose. UV channel, 395-400 nm. Lid closed — the two never light together.
- You set the exposure. Use a watch, or the optional Wi-Fi module to switch off the UV at your chosen time.
- The UV goes out. Exposure ends. Your paper is ready for the next step of the process.
- Think bigger. From A4 to A3+, the same way of working.
- More room for your images. The A3+ accommodates prints up to 32 × 48 cm.
- More space. Same exposure. Same LED density, same distance from the glass. Exposure times stay the same.
- The same familiar gestures. The glass and arms get wider. Your way of working stays the same.
- Two formats. Your choice. A4 or A3+: two models for your contact prints.
Vision Picturale · UV exposure unit
LuminographLight.
On your terms.
Expose your cyanotypes and alternative prints indoors. A constant UV source. Your choice of exposure time.
Made in France · 2-year warranty · 1 year of Calibration Flow Pro included
01Construction02Two lights03Two formats
Scroll to explore Built around your practice
Less waiting.
More printing.
For cyanotype and alternative photography. Control the light, keep the pleasure of making.
Contact that matters.
Two mechanical arms hold the negative against the paper throughout exposure.
A simple workflow.
Red safelight to prepare, UV to expose. One selector, with two separate light channels.
02 formats / one principle
How big
will you print?
Same exposure times. Same familiar gestures. Choose the size of your next prints.

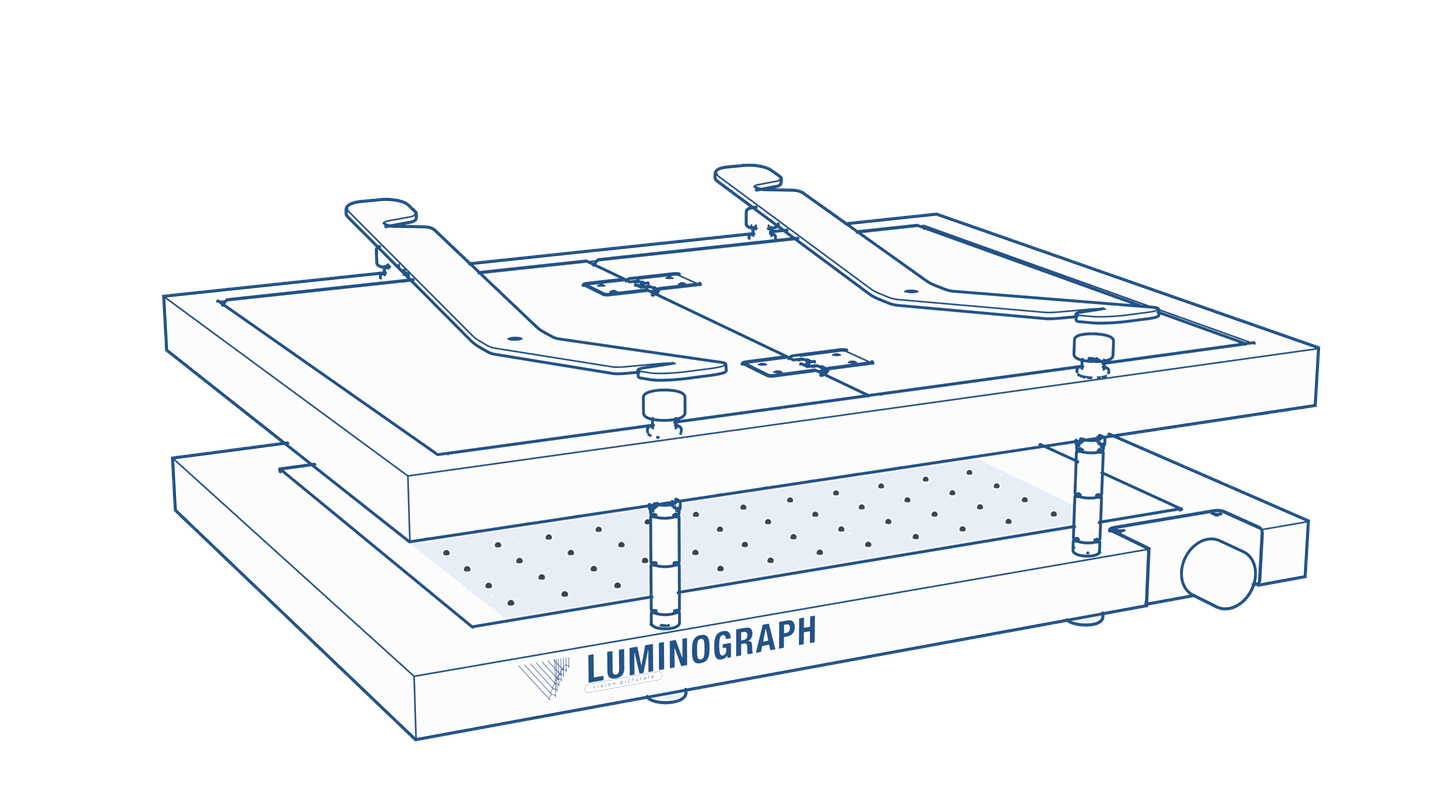

LuminographThe compact format
A4
€449
For a first studio, a working table, a practice that grows.
- Prints up to
- 21 × 29.7 cm
- Exposure area
- 23 × 33 cm
- UV power
- 30 W

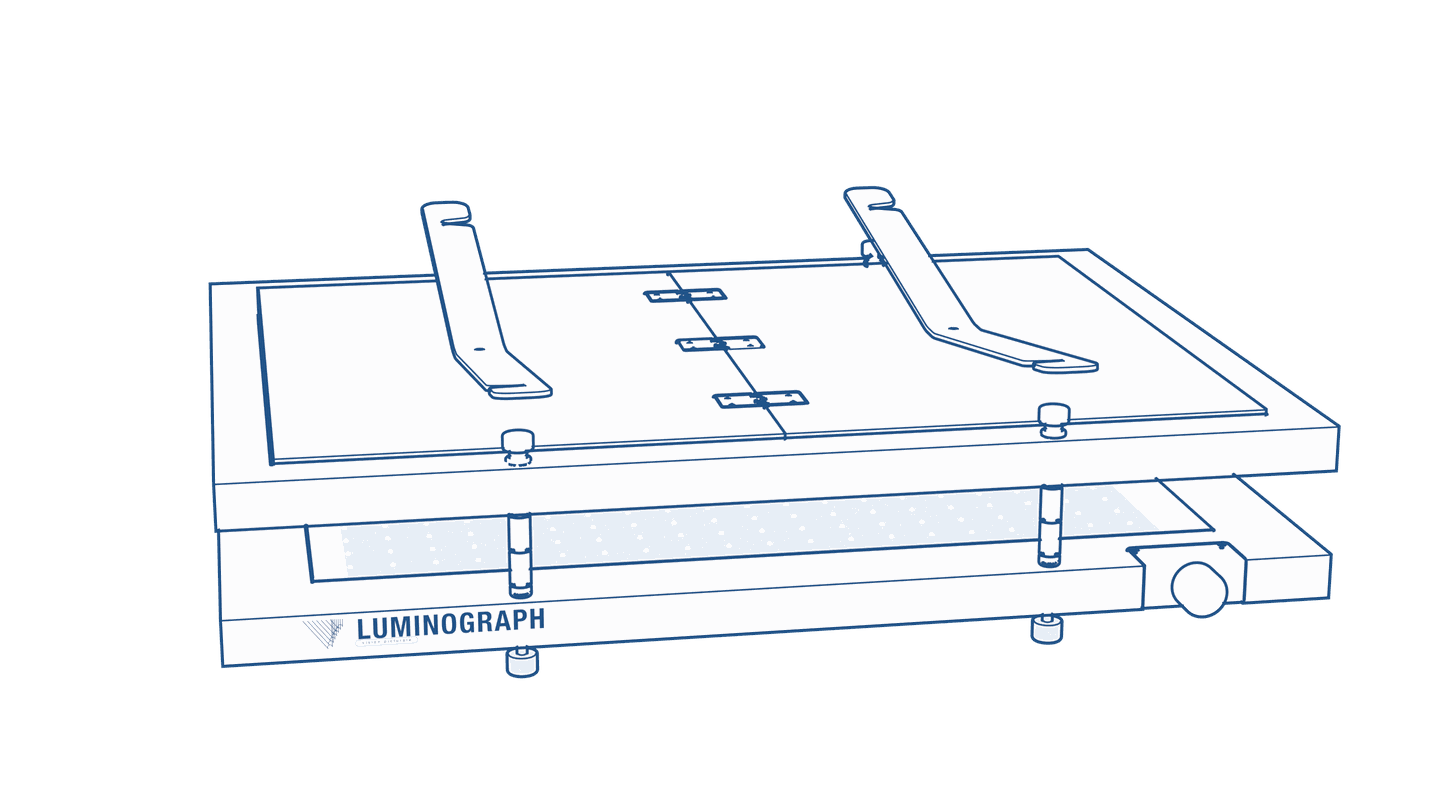

LuminographRoom for bigger ideas
A3+
€699
For larger compositions and studios that need more space.
- Prints up to
- 32 × 48 cm
- Exposure area
- 36 × 51 cm
- UV power
- 60 W
The A3+ powers a larger LED board, with the same LED density. Its extra power covers more area; exposure times stay the same.
Every detailAll technical specifications
Technical specifications
Max format
21 × 29.7 cmExposure area
23 × 33 cmUV power
30 WPower supply
24 VWavelength
395-400 nmSafelight
Built-in red safelightControl
Wi-Fi, optional moduleNegative/paper contact
Mechanical pressure, 2 armsWeight
~3.5 kgConstruction
Warm-grey painted MDF; aluminium partsA three-position selector drives the lighting: red safelight channel, off, UV channel. The two never light together — the red light lets you prepare and position the negative without fogging the sensitised coat.
The machine doesn't count time for you: it lights, you decide when to stop. Since its output varies with neither the hour nor the season, a watch is enough to repeat exactly the same exposure from one print to the next. The Wi-Fi module, sold separately, takes over that counting: driven from the Calibration Flow app, it switches the UV channel off at the chosen time.
Compatible processes
Cyanotype
Gum (Color & Sanguine)
Resinotype
Bromoil
Carbon print
Indicative exposure times
Cyanotype3-5 min
Gum print4-8 min
Resinotype6-10 min
Bromoil2-4 min
Carbon print5-10 min
* Times vary with negative density, paper humidity and the exact process used
Designed and made in France
What is a Luminograph?
A UV exposure unit for contact printing in alternative photography, including cyanotype. Place the negative against sensitised paper, hold them with the press, then expose under the UV light.
A4 or A3+: which should I choose?
Choose for the largest print you want to make: up to 21 × 29.7 cm on A4, and 32 × 48 cm on A3+. Both use the same LED density at the same distance from the glass, so exposure times are the same.
Does it include a timer?
No. The built-in selector controls the red safelight, off and UV light. Time your exposure with a watch, or add the optional Wi-Fi module, controlled from Calibration Flow, to switch off the UV at your chosen time.
Can I still print in sunlight?
Yes. Luminograph lets you work indoors, without waiting for the weather. Exposure time still depends on your process, paper and negative: make a test strip to find your starting point.
Where is it made, and what is the warranty?
Luminograph is designed and manufactured in France, with a two-year warranty.
Contact printing, in practice
The negative controls how much UV light reaches the sensitised paper. The Luminograph LED source emits at 395–400 nm. Exposure time depends on the process and the negative; a test strip helps you choose it.
Contact printing uses a negative the same size as the final image. The mechanical press keeps it against the paper during exposure. The Luminograph is an exposure unit: it does not enlarge the negative.
Your next print starts here
Make room
for your images.
Designed and made in France · 2-year warranty · 1 year of Calibration Flow Pro included · Optional Wi-Fi control
